DC24V,10mm,240led/m, one color


Voltage:DC24V

Power:19.2 watt

PCB Width:10mm

Colors:white/warm white/red/green/blue/yellow/pink/ice blue/Customized colors

SMD2835

LED/m:240leds/m

LED chip:Epistar/Sanan/lumileds

3ounce copper on PCB

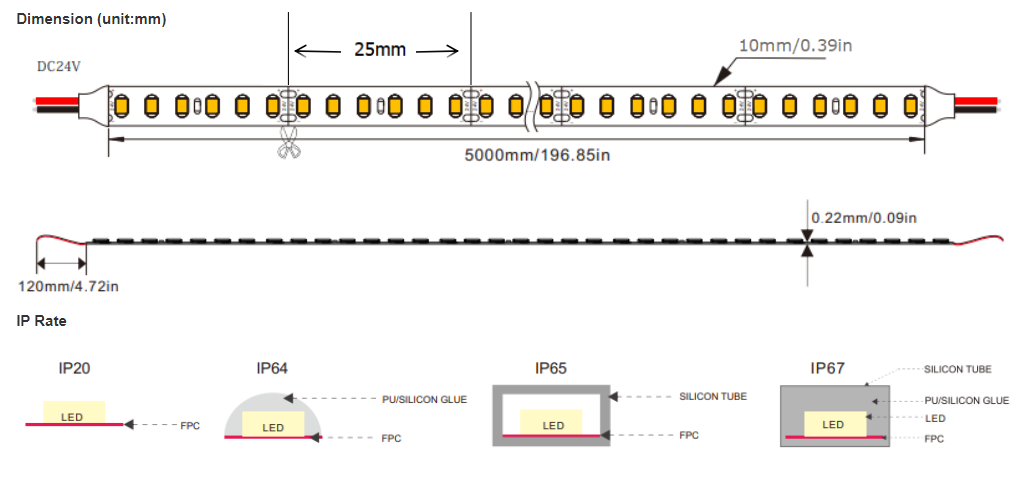

25mm cuttable unit


This is an one color LED strip
Each 6led in a group, we can cut from the cut line with 6leds
With240pcs SMD2835 white LED per meter
5meters/reel is standard package
10mm PCB width in standard
The PCB is made by 3 Ounce thickness copper,all soldering Pads
are big, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 2pins bare wires for powering cables
3M tape attached on backside of the FPC
5 different waterproof types :IP20,IP54, IP65, IP67,IP68
Widely ue in the roof decorations, bathroom lighting,cabinet lighting etc.


Main Parameters (SMD2835 White,3/6led cuttalbe)

Item No. S10W2835L240CV24
Voltage 24V DC
Power Typical 15Watt/meter,Max 19.2Watt/meter
CRI RA 80/90/95
LED Type SMD 2835
LEDs/m 240PCS
Cutting unit 25mm(6led)
Lumen 1350lm/m in standard, 1536lm/m in Max
Available colors         1800K/2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue
IP Rate IP20/IP64/IP65/IP67
