one led cuttable strip-youlikeled.com

24V,168LED,one color,1led cuttable

Voltage:DC24V

Power:8watt

Colors:white/warm white/red/green/blue/yellow/pink/ice blue/Customized colors

LED/m:168leds/m

LED chip:Epistar/Sanan/Phillips

This is a one color LED strip
Each 1led in a group, we can cut from the cut line with only 1led
With168pcs SMD2835 white LED per meter
5meters/reel is standard package

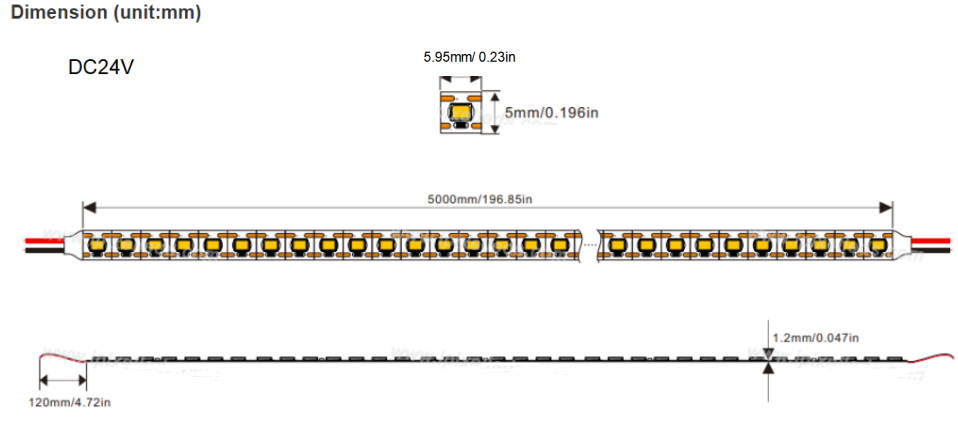

5mm PCB width
The PCB is made by 2 Ounce thickness copper,all soldering Pads
are big, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 2pins bare wires for powering
3M tape attached on backside of the FPC

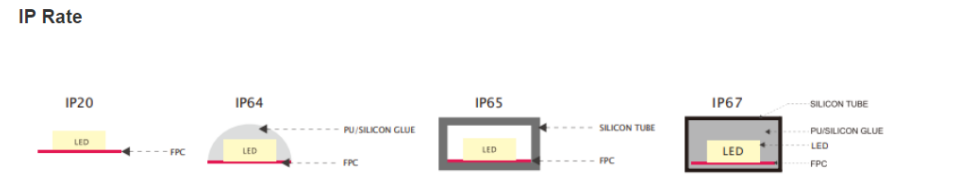

5 different waterproof types :IP20,IP54, IP65, IP67,IP68
Widely ue in the roof decorations, bathroom lighting,cabinet lighting etc.

Main Parameters (SMD2835 White,3/6led cuttalbe)

Item No.	LED Type	LED / m	Voltage	Watt / m	Cuttable unit	Lm / Watt	IP rate	PCB Size	PCB COLOR
S10W2835L168	SMD 2835	168	DC24V	8	5.95	80	IP20/64/65/67/68	5MM	White/Black/Customized
S10W2835L168	SMD 2835	168	DC12V	8	5.95	80	IP20/64/65/67/68	5MM	White/Black/Customized

24V,168LED,one color,1led cuttable
