Voltage:DC24V
Power:4.8watt
Colors:white/warm white/red/green/blue/yellow/pink/ice blue/Customized colors
LED/m:60leds/m
LED chip:Epistar/Sanan/Phillips
This is a one color LED strip
Each 6led in a group, we can cut from the cut line with 6leds
With 30/60/70/80/120/240pcs etc SMD2835 white LED per meter
5meters/reel, 10meters / reel are standard
8/10mm PCB width
The PCB is made by 2 Ounce thickness copper,all soldering Pads
are big, allowing you to easily cut and reconnect
DC12V/24V constant voltage operation
Both ends have 2pins bare wires for powering
3M tape attached on backside of the FPC

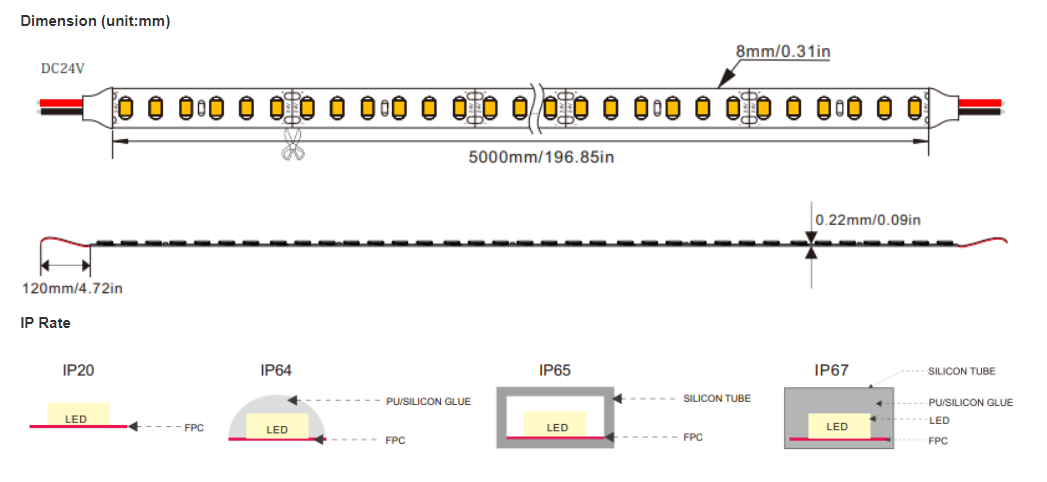

5 different waterproof types :IP20,IP54, IP65, IP67,IP68
Widely ue in the roof decorations, bathroom lighting,cabinet lighting etc.
Main Parameters (SMD2835 White,3/6led cuttalbe)
|
Item NO. |
LED type |
LED/m |
Voltage |
Watt/m |
Cuttable(mm) |
Lm / Watt |
IP Rate |
PCB width |
PCB color |
|
S08W2835L60 |
SMD2835-6000K |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
8mm |
White Black
|
|
S08R2835L60 |
SMD2835-RED |
60 |
24V |
3.5 |
100mm |
90 |
IP20/64/65/67/68 |
8 / 10mm |
White Black |
|
S08Y2835L60 |
SMD2835-YELLOW |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
10mm |
White Black |
|
S08B2835L60 |
SMD2835-BLUE |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
8/ 10mm |
White BlacK |
|
S08G2835L60 |
SMD2835-GREEN |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
8 / 10mm |
White Black |
|
S08WW2835L60 |
SMD2835-3000K |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
8 / 10mm |
White Black |
|
S08NW2835L60 |
SMD2835-4000K |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
10 mm |
White Black |
|
S08CW2835L60 |
SMD2835-10000K |
60 |
24V |
4.8 |
100mm |
90 |
IP20/64/65/67/68 |
12mm |
White Black |
