Voltage:DC24V
Power:6watt

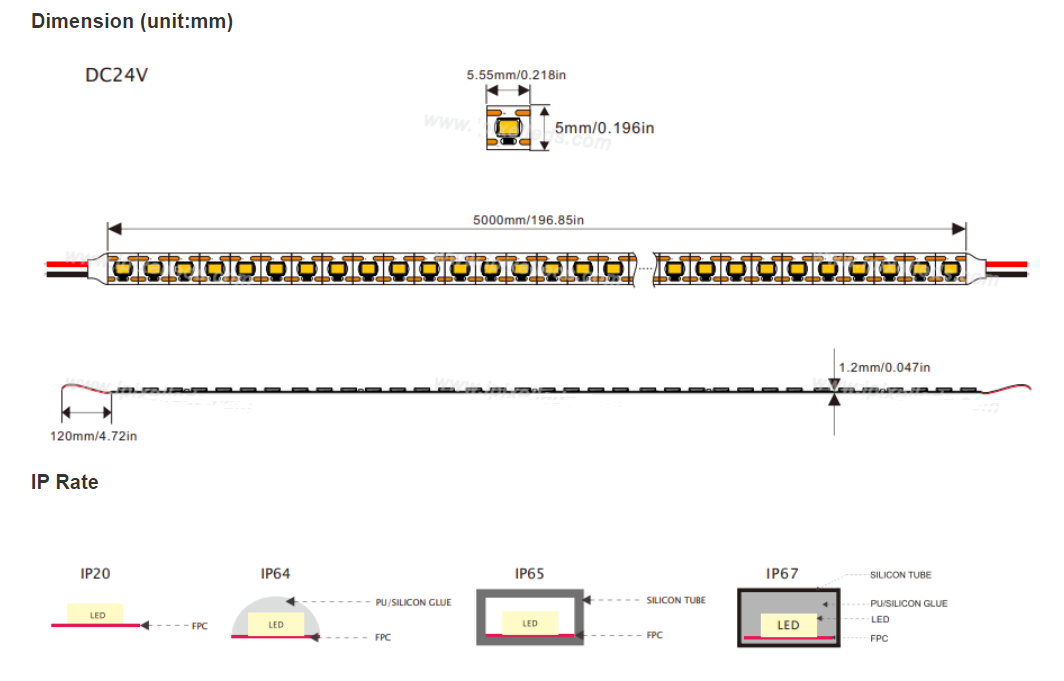

PCB Width:5mm
Colors:white/warm white/red/green/blue/yellow/pink/ice blue/Customized colors
LED/m:180leds/m
LED chip:Epistar/Sanan/Phillips
| Item No. | S05W2835L120CV12 |
S08W2835L120CV24 |
| Voltage | 12V DC | 24V DC |
| Power | Typical 6Watt/meter，Max 8Watt/meter |
Typical 6Watt/meter，Max 8Watt/meter |
| CRI | RA 80/90/95 |
RA 80/90/95 |
| LED Type | SMD 2835 |
SMD 2835 |
| LEDs/m | 180PCS | 180PCS |
|
Cutting unit |
55.5mm(3LED) | 55.5mm(6led) |
| Lumen | 690lm/m | 690lm/m |
| Available colors | 2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue |
2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue |
| IP Rate | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 |
